ProLockey Gate Valve Locks

Хавхлагын түгжээ

Code: 11-4054 ∙ PN: SGVL01-05

Ирж байгаа

Барааны тайлбар

Брэнд	ProLockey
Үйлдвэрлэгчийн дугаар	SGVL01-05

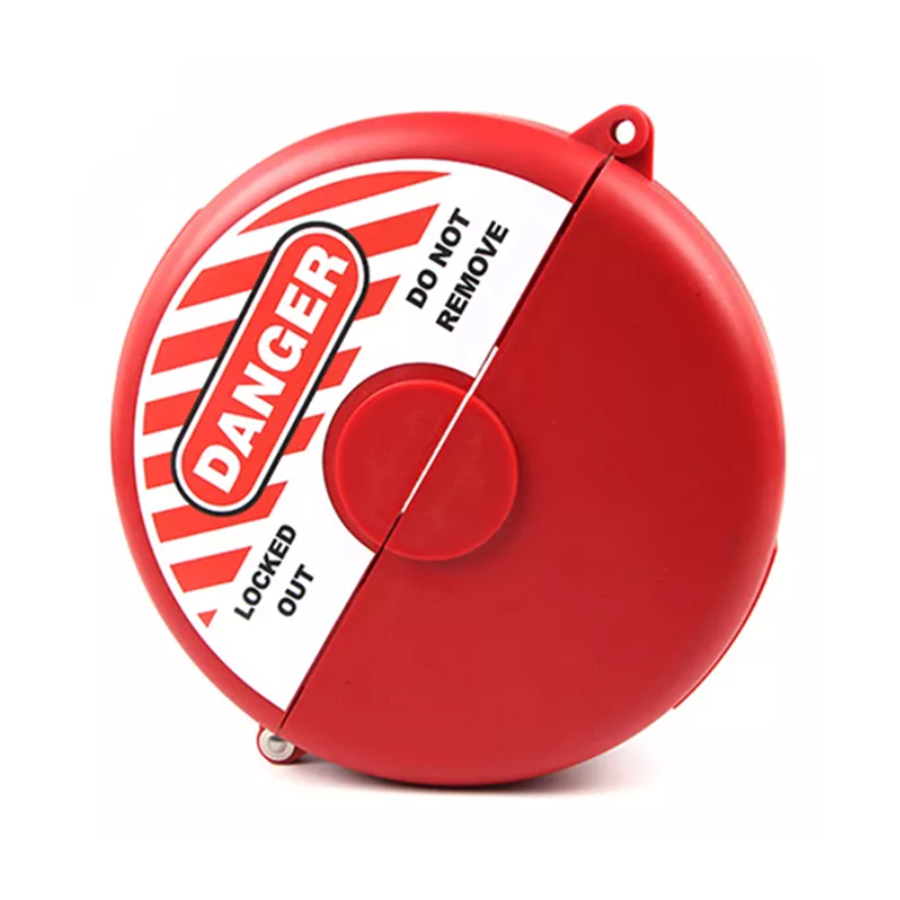

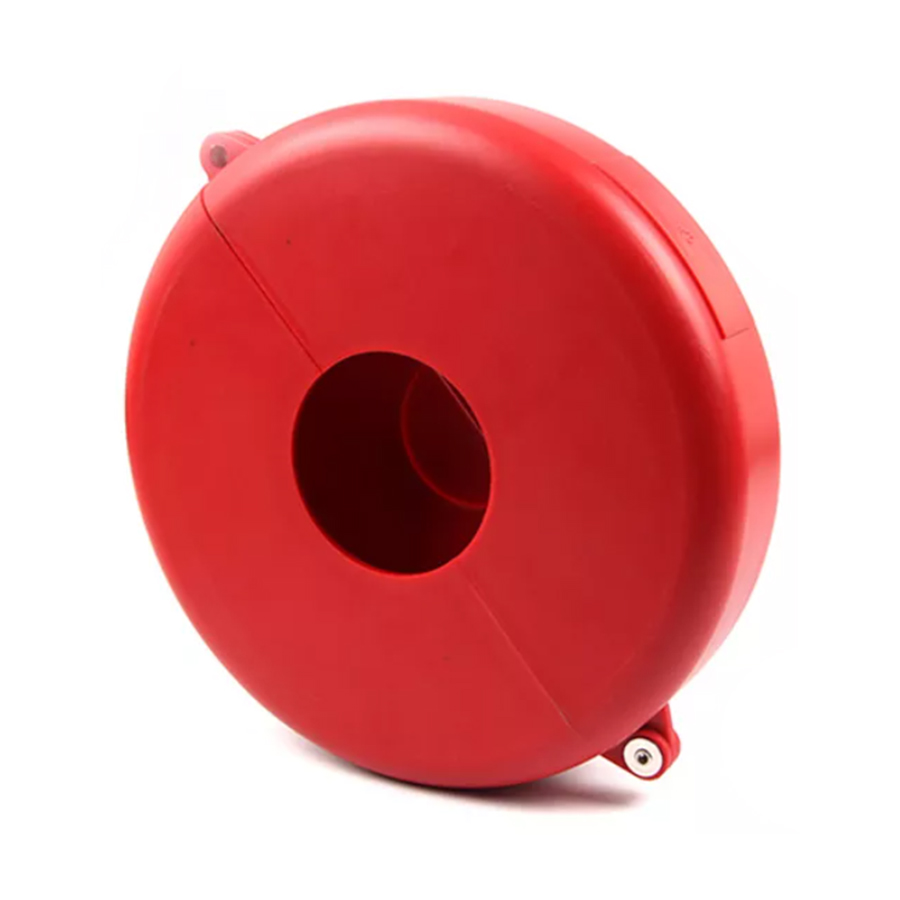

Standard Gate Valve Lockout SGVL01-05

a) Made from durable ABS, withstand temperature from -20℃ to +90℃.

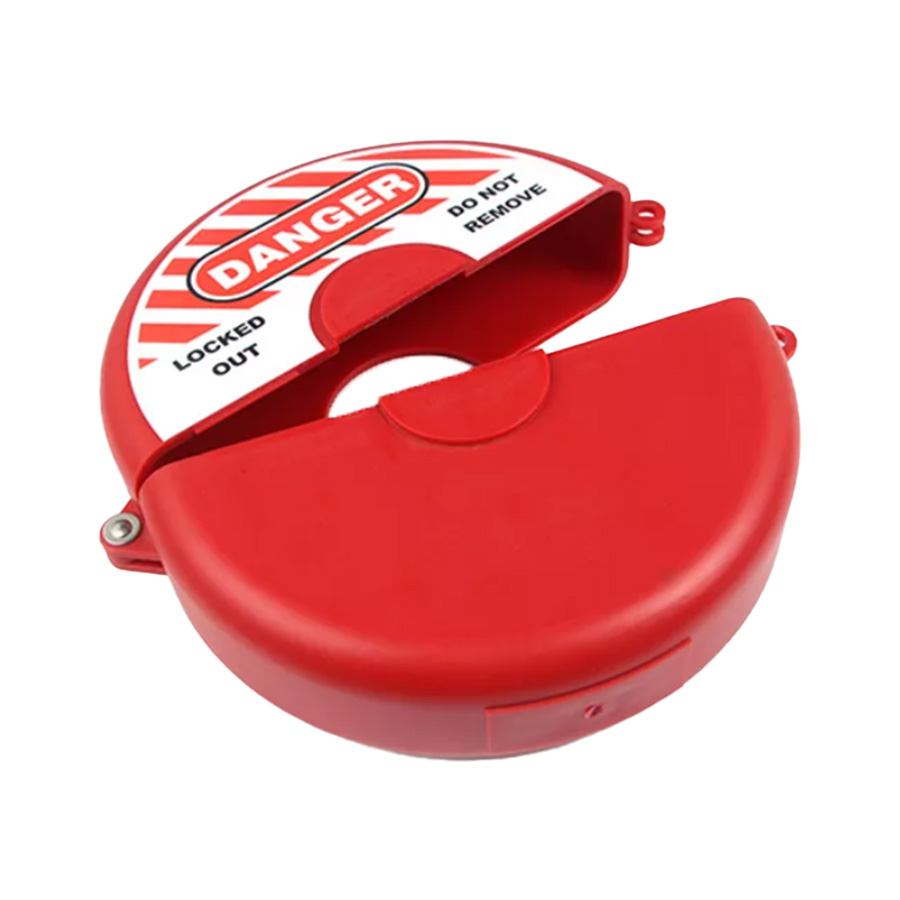

b) Once locked, it covers around the hand wheel and prevent the valve wheel from being turned.

c) Accept up to 1 padlock, locking shackle max diameter 9.8mm.

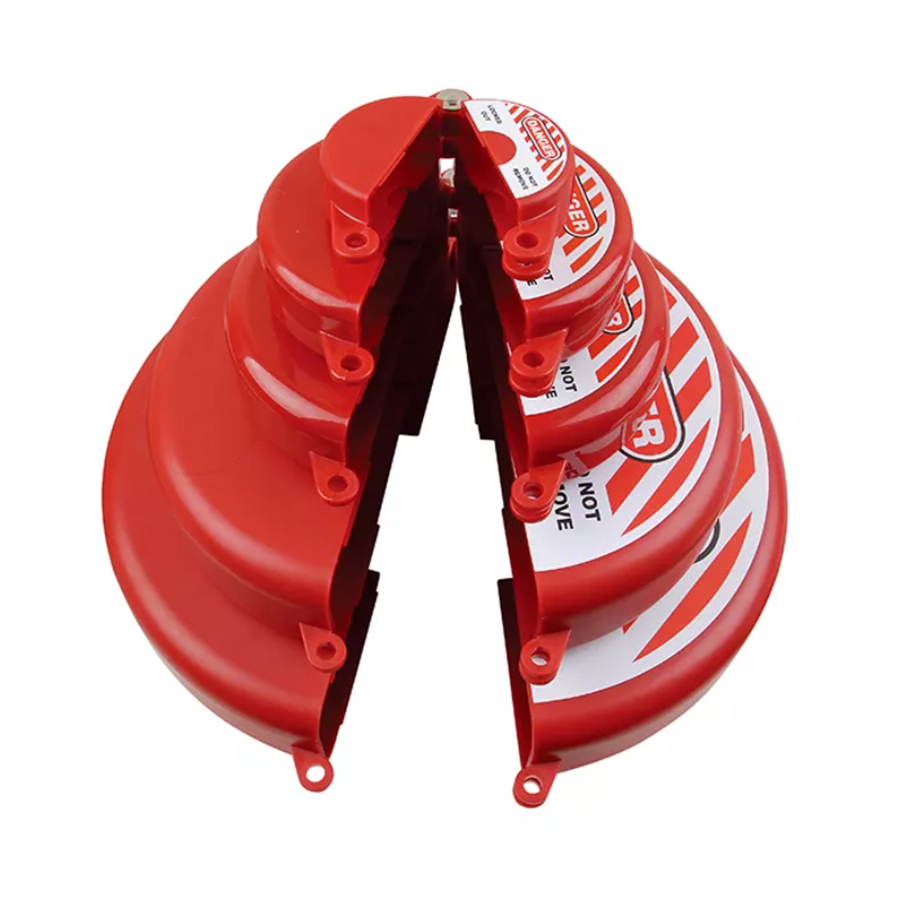

d) Available in 5 sizes and red color, other colors can be customized, providing English tag.

e) Transparent one can be customized by PC.

f) Part no.: SGVL01-TR ~ SGVL05-TR.

Part No.	Description	A	B	C
SGVL01	Suitable for valve handle 1” to 2 1/2” in diameter	80	30	20
SGVL02	Suitable for valve handle 2 1/2” to 5” in diameter	142	37	45
SGVL03	Suitable for valve handle 5” to 6 1/2” in diameter	184	44	63
SGVL04	Suitable for valve handle 6 1/2” to 10” in diameter	280	67	89
SGVL05	Suitable for valve handle 10” to 13” in diameter	364	67	105
